Adria Adora 642 UP

This page contains miscellaneous information about the Adria Adora 642 UP caravan, in particular the 2011 model.

Some of this information was hard to find online and so has been summarised here.

Adria 2011 brochure

Adria 2011 technical information


Photographs


Instructions

According to Adria UK it is not possible to obtain the instruction booklet in electronic format. There is a Danish version online!


Alko receiver and wheel lock

The Adria Adora range is built on an Alko chassis which is fitted with Alko receivers.  However, unless the optional alloy wheels are fitted then apparently it is not possible to fit an Alko  wheel lock because the steel wheels do not permit access to the receiver.


Battery Box

The size is not specified in the documentation but is approximately 350mm long.  This is not big enough to take some high end leisure batteries such as the Banner and Varta 110Ah.  The box is apparently deep and tall enough to take most other leisure batteries.


Wheel

The wheels on the Adria Adora are larger than most UK caravans.

The rim size is 6Jx15H2

The tyre size is 195/70R15C 104/102N

This means they are 15 inches.  The rim has five sockets.  As noted above, only the alloy wheels are compatible with the Alko receiver.

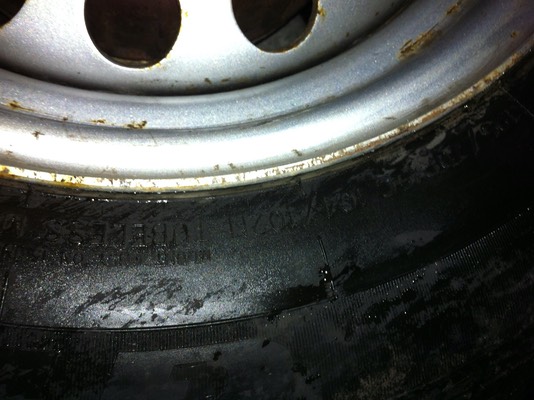

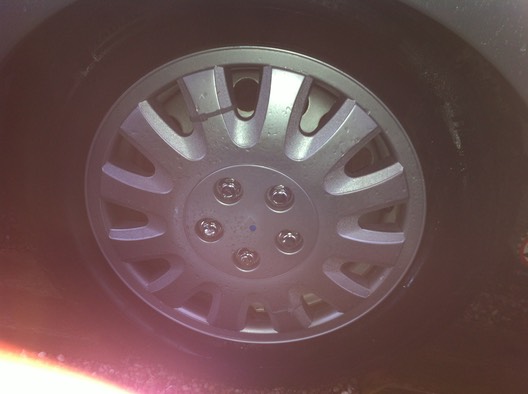

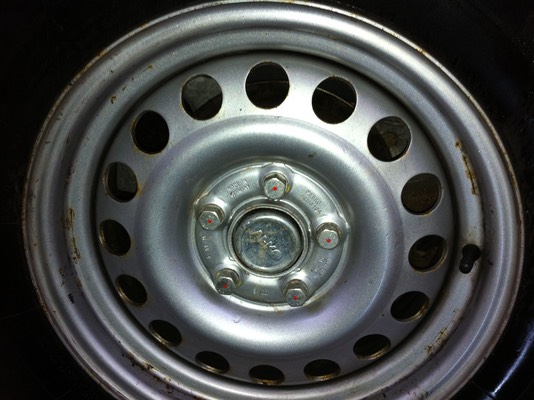

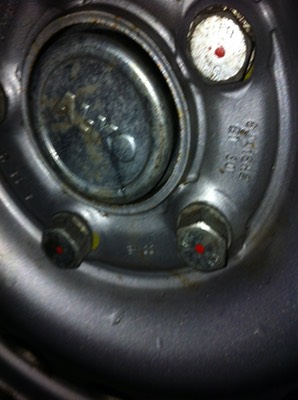

Cvan-Wheel1 Cvan-Wheel2

Cvan-Wheel3 Cvan-Wheel4

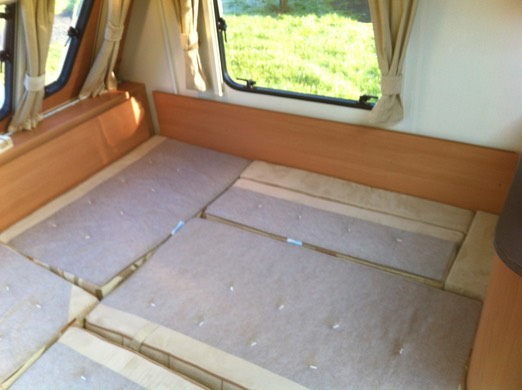

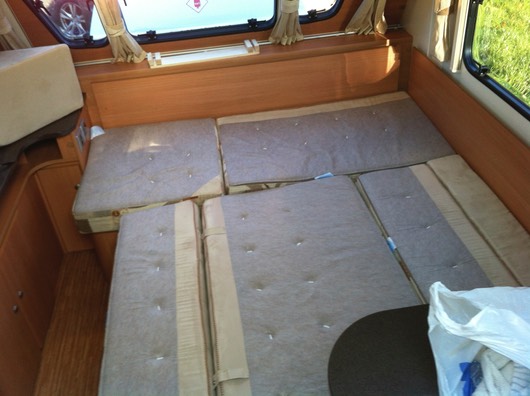

Front Bed

Nobody seems to know exactly how the front bed makes up.  The table has to be lowered to its down position.  This is our best attempt to far.  It appears that you are expected to sleep in line with the length of the van, based on the dimensions quoted.

FrontBed-1 FrontBed-2
